Among the container stage specifications currently produced, this model corresponds to a larger deployed scale.
The focus of C545 is not only to provide basic stage functions, but to offer more complete stage use conditions for large events.
Within this deployed range, stage performance, equipment placement, crew organization, and on-site workflow can form clearer functional zones, making it more suitable for large events that require richer stage tasks.
Reference configuration: 3–4 people, about 60 minutes to enter equipment setup.
For long-term use, extended event workflows, and large public projects, C545 is more suitable as the core structural solution within the container stage range.

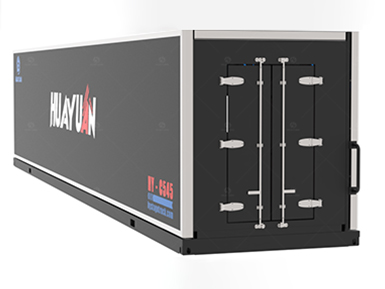

In closed mode, C545 keeps a container-style body. After arrival, the hydraulic system completes deployment, forming the zoning, suspension, and load-bearing base required for large events within one stage structure.
The stage body, hydraulic mechanism, and upper structure are stored within the container body range.
Project transport and delivery can be organized around the container-style format, without relying on the form of a dedicated stage vehicle.

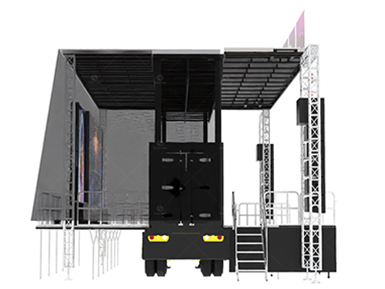

The main opening and closing movements of the stage are handled by the hydraulic system.
When the large structure changes from closed mode to usable mode, the main mechanical movements do not rely on a large amount of manual work.

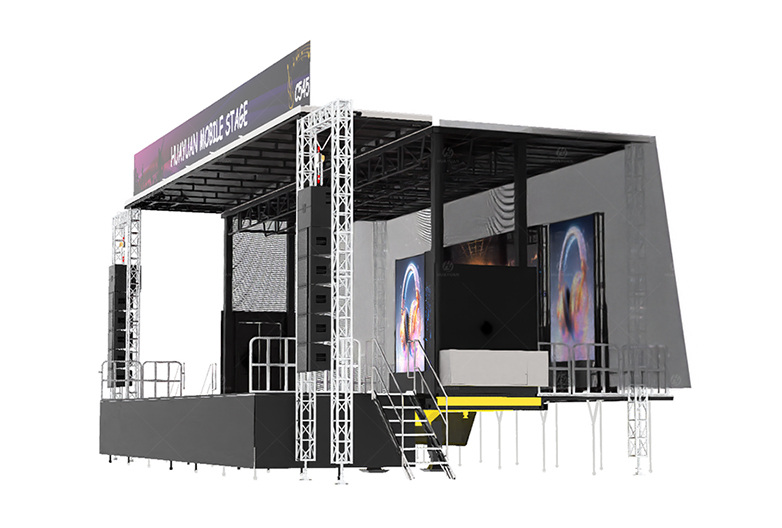

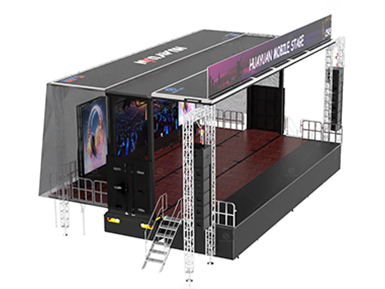

After deployment, the stage structure can support performance, hosting, equipment operation, and on-site workflow arrangements at the same time.
Within the same stage area, event content can form clearer functional zones, making it suitable for on-site organization in large projects.

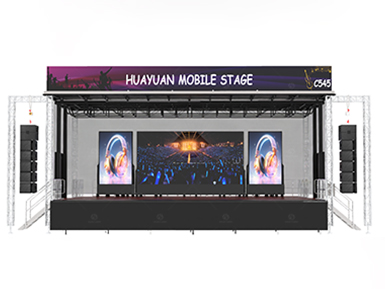

The roof lighting load, line array suspension conditions, and stage load-bearing base have entered the use range of large events.
Personnel positioning, equipment placement, and overhead system installation can be organized within the same structure, meeting the load-bearing and suspension safety requirements of large projects.
| Length | 13.716 m | 45' |
| Width | 2.5m | 8'2" |
| Height | 2.8m | 9'19'' |
| Curb weight | 16000kg | 35274 lb |
| AST | Skeleton Trailer/Flatbed Trailer | - |
| Corner Casting | 6 | - |
| Fixing | Fixing Plate | - |
| Length & Depth | 12.716m x 8.7m | 41.72' × 28.54' |
| Height from Ground | 1.7 m | 5'58'' |
| Load capacity | 650 kg/m² | 133lb/ft² |
| Surface material | Birch anti-slip laminated board | - |
| Control system | Wireless remote + push button switch | - |
| Setup | 4 people/60 minutes | |
| Wind resistance | with windwalls | 62mph 100km/h |
| without windwalls | 71mph 115km/h |
| Length & Depth | 13.716m x 7.25 m | 45' × 23'79'' |
| Stage to roof height | 4.94 m | 16'21′' |
| Floor to roof height | 6.64m | 21'78'' |
| With Banner height | 7.84m | 25’72‘’ |
| Surface material | Fiberglass Honeycomb Panel | - |
| Lighting truss load capacity | 4200 kg | 9259 lb |
| Speaker rack load capacity | 900 kg/each | 1984 lb /each |
| Top signal cable | 2-channel output | - |
| Stage lighting socket | 24-channel | - |
When a project has reached the large-event level, C545 can directly take on the core stage role for the whole event, without adding auxiliary stage units to support the main content.
Performance areas, equipment areas, and operating areas can be established separately within the same stage, without compressing different content into one small area.
When the main stage body can already support the core use requirements, the project does not need to add too many temporary auxiliary structures to complete the main stage function.
Lighting, audio, backdrop, and regular performance equipment can be organized and installed within the same stage structure, without splitting the main systems into multiple separate layouts.
Stage loading, roof loading, and suspension conditions have entered the common use range for large events.
Personnel access, equipment placement, and system installation can be included in the same implementation plan.
For long-duration events, long-term stationed projects, or repeated large events, C545 can serve as a core stage solution for continuous use, rather than a one-time event configuration.

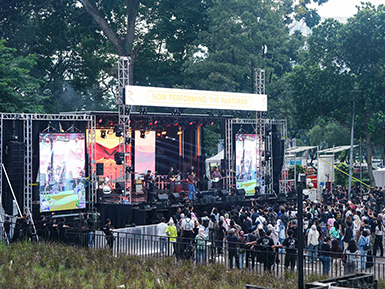

Used for open park events, where the main stage visuals and crowd organization need to stay clear.

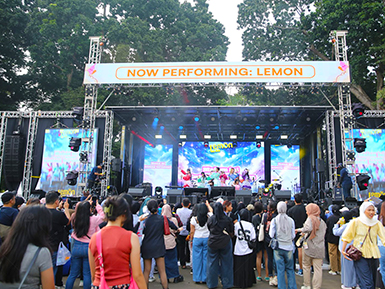

In street events where audiences gather at close range, the deployed stage makes side visual presentation and on-site sound reinforcement easier to arrange.

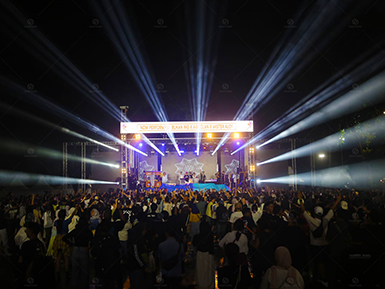

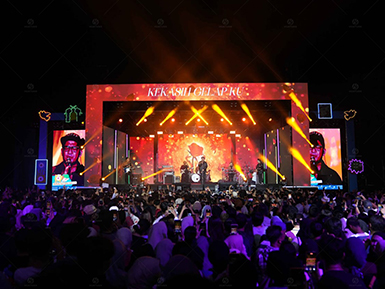

For night programs, the LED display serves as the core visual output, while the lighting system supports stronger stage rhythm and visual impact.
High-atmosphere segments rely mainly on lighting and stage effects, while the stage system supports stable operation during continuous performance periods.
