Without changing the semi-trailer stage transport and deployment system, S565 significantly increases the usable area after stage deployment.
The larger stage deck size allows performers, audio equipment, lighting structures, and stage accessory units to be arranged on the same stage at the same time, without repeated on-site adjustments to equipment positions.
When a project has already confirmed that a semi-trailer stage structure is feasible, but on-site execution begins to face limitations in stage area, S565 is more suitable for outdoor event projects with more personnel and a more complete equipment configuration.
S565 is built around a 15.3 m body length and an approximately 168 m² stage area. It covers hydraulic deployment, 6 m roof height, and on-site accessory configuration, making it suitable for outdoor projects with higher requirements for personnel and equipment layout.

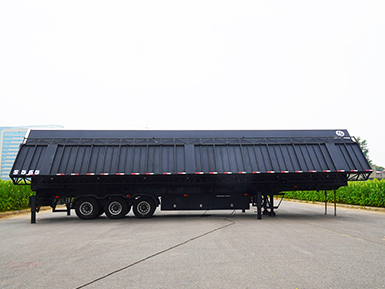

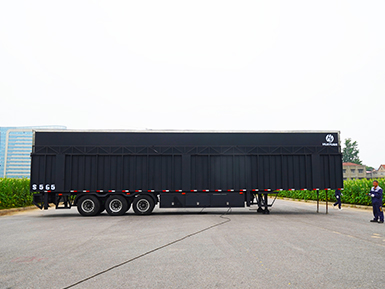

In transport mode, the stage platform, wing panels, and roof structure are fully retracted and mechanically locked.
The body length is 15.3 m. In the closed state, the overall vehicle proportion and structural sections can be checked.
The hydraulic movements are controlled by remote control.
The main platform and left and right wing panels deploy in sequence and are then locked.

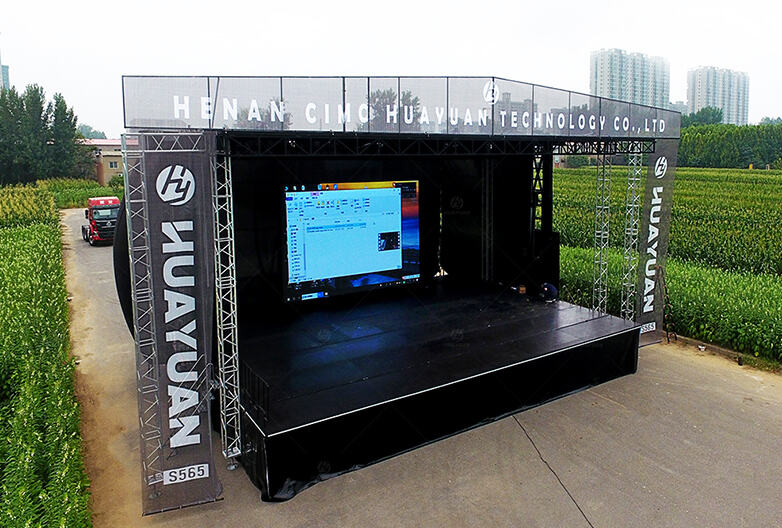

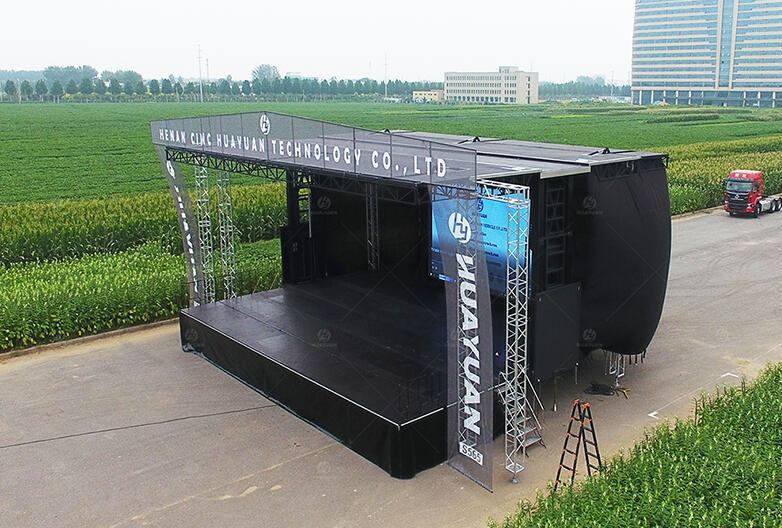

After deployment, the deck span is larger, making it easier to divide the main stage area and equipment layout area.

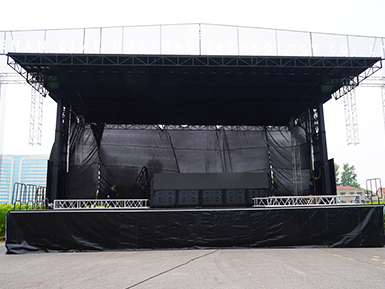

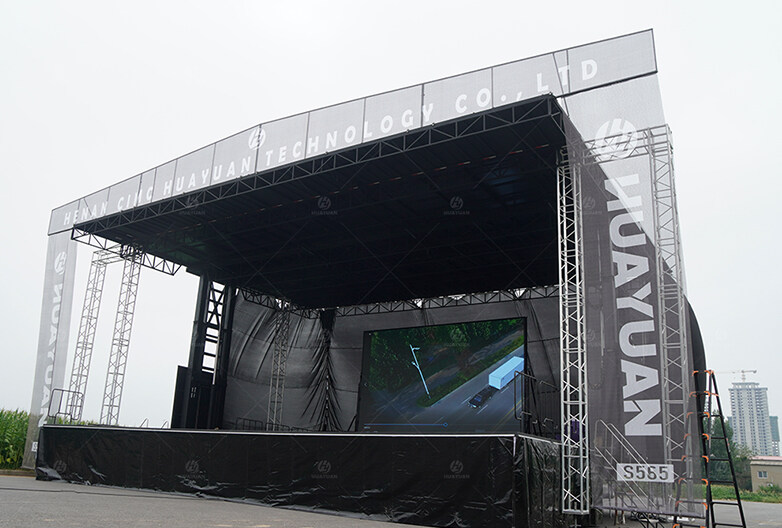

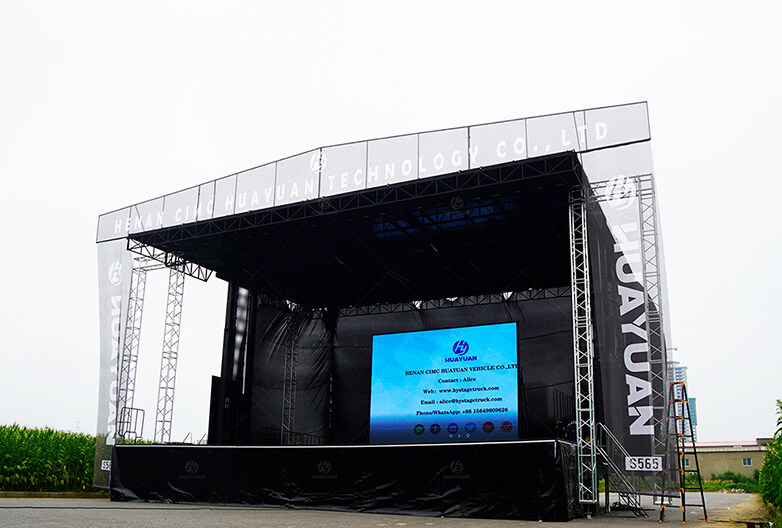

The roof is raised to its working height and covers the main stage area.
The height from the stage deck to the roof is 6 m, making it easier to arrange overhead lighting and audio systems.

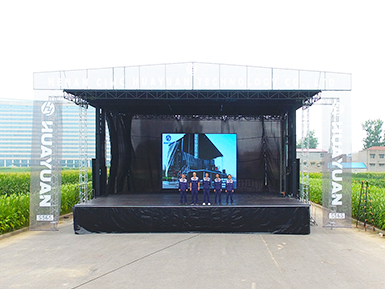

Standard accessories include stairs, guardrails, stage skirting, backdrop curtains, and power distribution-related components.
The actual photos help confirm the fixing positions and installation methods of these parts.
| Length | 15.3 m | 50'2" |
| Width | 2.8m | 9'19" |
| Height | 4.2 m | 13'78" |
| Curb weight | 25000kg | 55116 lb |
| Total mass | 40000kg | 88185 lb |
| Axle/suspension | 3 Bridge/plate spring | - |
| Tyre | 12+1 | - |
| Length & Depth | 14m x 12 m | 45'93"×39'37" |
| Height from Ground | 1.6m | 5'25" |
| Load capacity | 650kg/m² | 133lb/ft² |
| Surface material | Birch hexagonal hemp anti-slip coating board | - |
| Control system | Wireless remote control + button switch | - |
| Setup | 4 people/60 minutes | - |
| Wind resistance | with windwalls | 62mph 100km/h |
| without windwalls | 71mph 115km/h |
| Length & Depth | 15.3 m x 11.42 m | 50'2"×37'47" |
| Stage to roof height | 6 m | 19'69" |
| Floor to roof height | 7.6 m | 24'93" |
| With Banner height | 8.8m | 28'87" |
| Surface material | FRP honeycomb panel | - |
| Lighting truss load capacity | 6000 kg | 13228lb |
| Speaker rack load capacity | 1200 kg/each | 2646 lb /each |
| Top signal cable | Route 2 | - |
| Stage lighting socket | Route 24 | - |
If the rehearsal or setup stage already feels crowded, S565 provides a larger stage area for arranging people and equipment at the same time, instead of repeatedly adjusting positions.
If the plan needs to remove content before implementation just to “fit everything in,” S565 allows the stage size to be ready first, so the solution does not need to compromise because of limited area.
Once the stage is deployed, equipment placement and performer positioning can begin directly, without adding temporary steps to complete the stage conditions.
Multiple systems can be prepared on stage at the same time, instead of using staggered timing to solve the problem of insufficient space.
With enough stage space, many temporary adjustments naturally disappear, and execution stays closer to the confirmed plan..
If S455 is already tight, while S595 clearly exceeds the current project needs, S565 usually sits in a more suitable middle position.
Suitable for performance projects that need multiple performers and stage equipment arranged at the same time. The stage area is sufficient, reducing repeated layout adjustments.

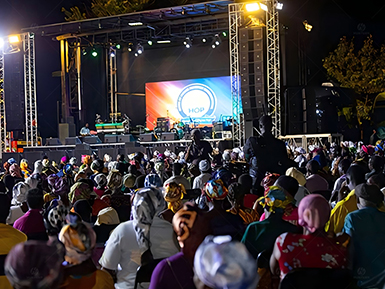

Suitable for touring scenarios where the stage needs to hold the main performance area, monitoring, return speakers, and auxiliary equipment at the same time.

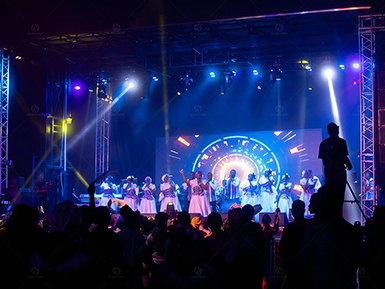

Suitable for public events where the stage needs to support performance, hosting, display, and other functions at the same time, allowing personnel and equipment to share the same stage space.

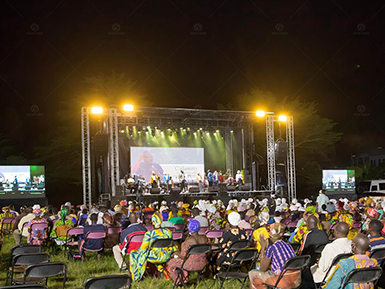

Suitable for projects that need to complete stage layout within a short time window. After deployment, equipment and personnel can be arranged directly according to the planned layout.
