S595 is designed for projects that have already confirmed the need for a large stage system.
With this specification, the stage height, roof structure, and overall volume can directly accommodate high-power lighting systems, long line array audio systems, and high-position suspension equipment, without reducing equipment quantity or changing the installation method.
When the number of lighting fixtures, audio scale, or suspension height required by the project has exceeded the usable range of a medium-size semi-trailer stage, S595 provides a stage platform whose structural dimensions can already cover these configuration requirements.
S595 keeps an approximately 168 m² stage area and increases the height from the stage deck to the roof to 9 m.
The roof lifting movement is completed by multi-stage hydraulic cylinders and guide columns with a longer stroke, making this model suitable for large outdoor projects.

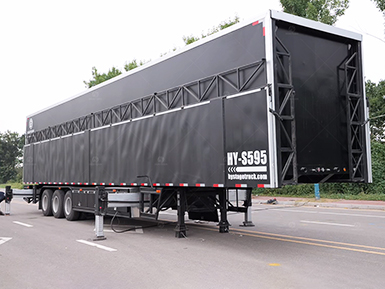

In transport mode, S595 keeps the exterior form of a semi-trailer.
The stage platform, wing panels, and roof structure are retracted and locked inside the vehicle body.
In this state, the focus is on the folding and fixing positions of the roof lifting structure.

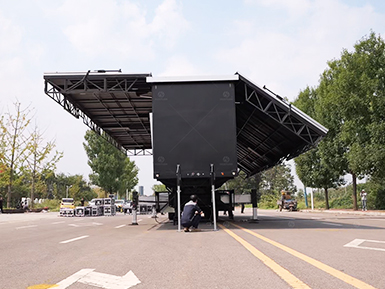

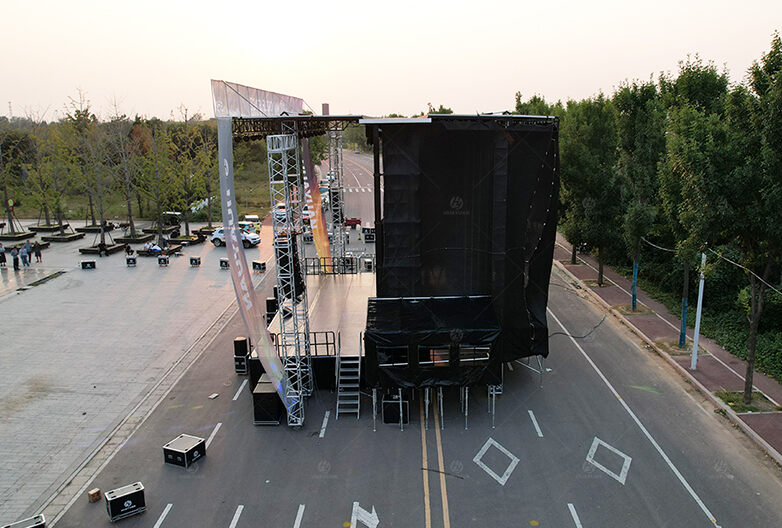

The operator controls the hydraulic movements by remote control to complete deployment.

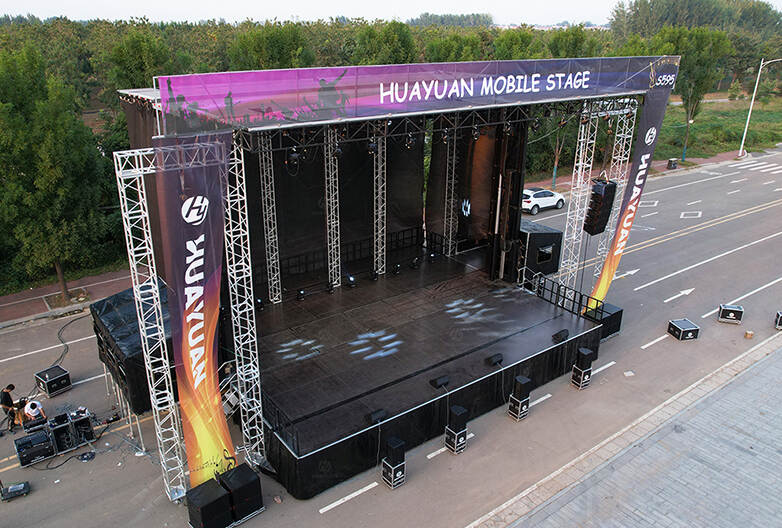

After the main platform and left and right wing panels are fully deployed, the structure is locked, forming an approximately 168 m² usable stage area.
The deployment focus of this model is the expanded effect and usable area division corresponding to the larger stage deck.

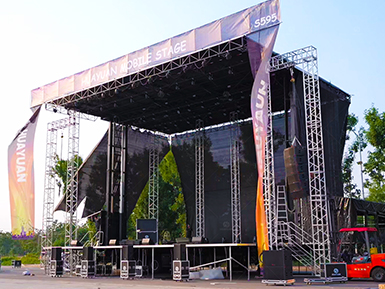

After the roof is raised, the height from the stage deck to the roof is 9 m.
S595 adds another stage to the hydraulic cylinders and guide columns to provide a longer lifting stroke and higher guiding travel.
The control system synchronizes the roof lifting movement to meet the consistency requirements under the high-roof working condition.

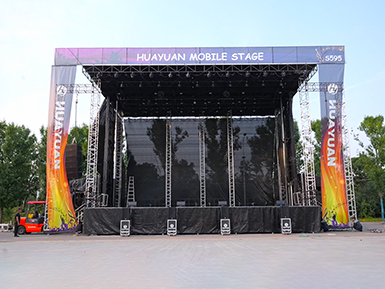

S595 standard accessories include stairs, guardrails, stage skirting, backdrop curtains, and power distribution-related components.
This accessory set covers stage access, boundary protection, visual screening, and on-site power organization.
| Length | 15.3 m | 50'2" |
| Width | 2.8m | 9'19" |
| Height | 4.2 m | 13'78" |
| Curb weight | 26000kg | 57320 lb |
| Total mass | 40000kg | 88185 lb |
| Axle/suspension | 3 Bridge/plate spring | - |
| Tyre | 12+1 | - |
| Length & Depth | 14m x 12 m | 45'93"×39'37" |
| Height from Ground | 1.6m | 5'25" |
| Load capacity | 650kg/m² | 133lb/ft² |
| Surface material | Birch hexagonal hemp anti-slip coating board | - |
| Control system | Wireless remote control + button switch | - |
| Setup | 4-5 people/90 minutes | - |
| Wind resistance | with windwalls | 62mph 100km/h |
| without windwalls | 71mph 115km/h |
| Length & Depth | 15.3 m x 11.42 m | 50'2"×37'47" |
| Stage to roof height | 9 m | 29'53" |
| Floor to roof height | 10.6 m | 34'78" |
| With Banner height | 11.8m | 38'71" |
| Surface material | FRP honeycomb panel | - |
| Lighting truss load capacity | 6000 kg | 13228lb |
| Speaker rack load capacity | 1200 kg/each | 2646 lb /each |
| Top signal cable | Route 2 | - |
| Stage lighting socket | Route 24 | - |
When equipment quantity, suspension positions, and usage methods have already been confirmed, S595 is more suitable for direct execution according to the plan, rather than repeated adjustment on site.
S595 is suitable for keeping lighting and audio systems suspended during multi-session or continuous use, reducing the risk and workload caused by frequent dismantling and reinstallation.
When multiple equipment groups operate at the same time, the structure of S595 is better suited to distributing equipment weight and avoiding concentrated loads.
When site or time conditions are limited, S595 helps complete equipment installation according to the planned structure, reducing on-site coordination pressure.
S595 meets equipment requirements while avoiding unnecessary stage scale, making it suitable for projects with limits on overall equipment volume.
For projects where stable system operation is a key requirement, S595 is more suitable as an equipment-bearing stage platform.

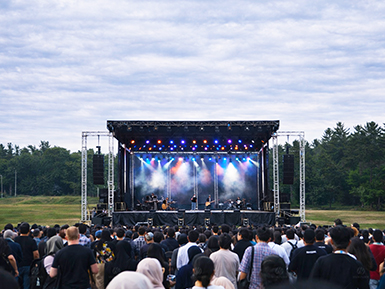

Suitable for projects that require a complete lighting and line array audio system, with performance scale already confirmed.
Suitable for events with complex equipment arrangements and tight execution schedules, where repeated on-site adjustment of stage conditions should be avoided.

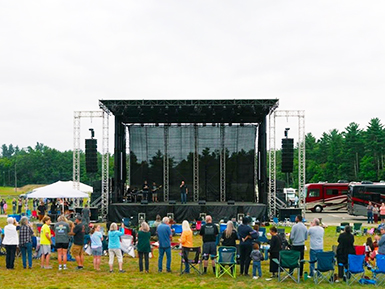

For events with clear procedures and stable execution requirements, S595 helps complete the overall deployment according to the confirmed plan.

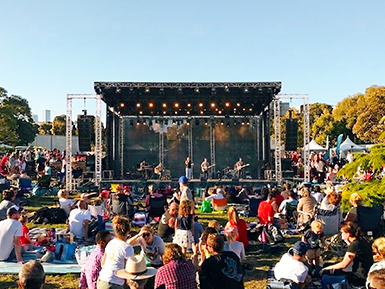

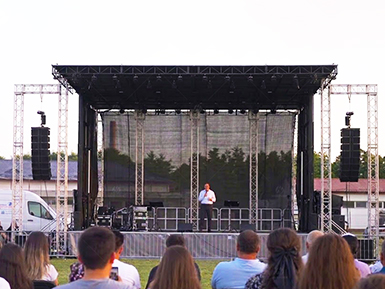

Suitable for performance or event scenarios where the same stage structure needs continuous use and repeated execution.
