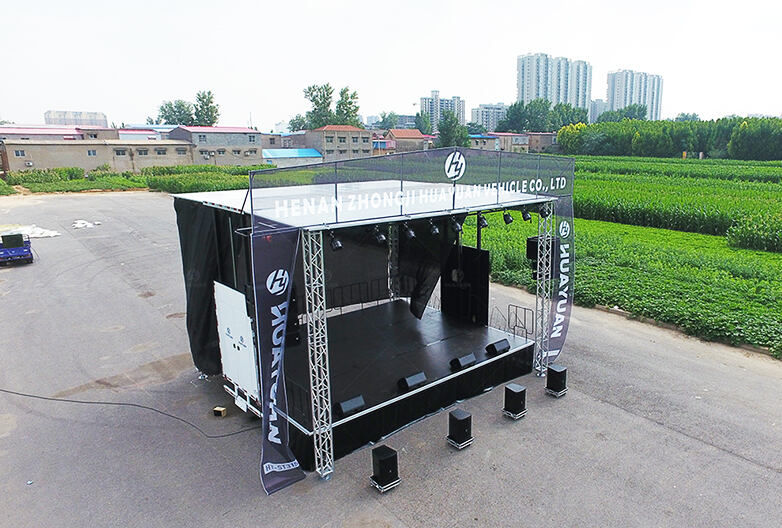

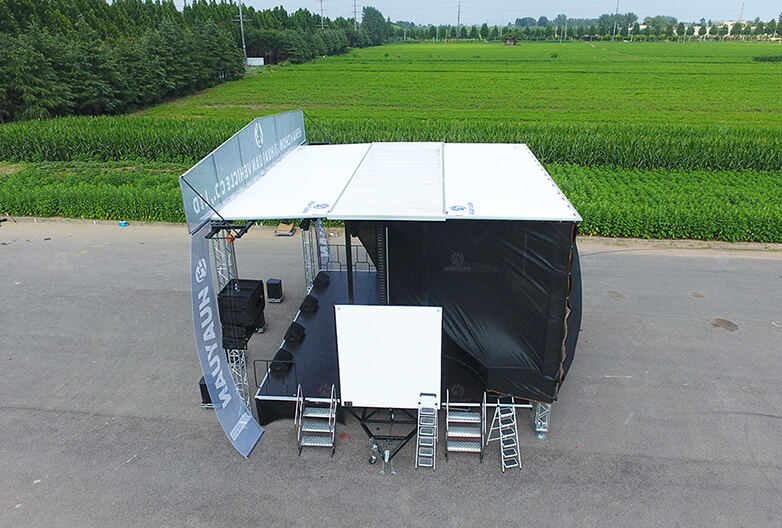

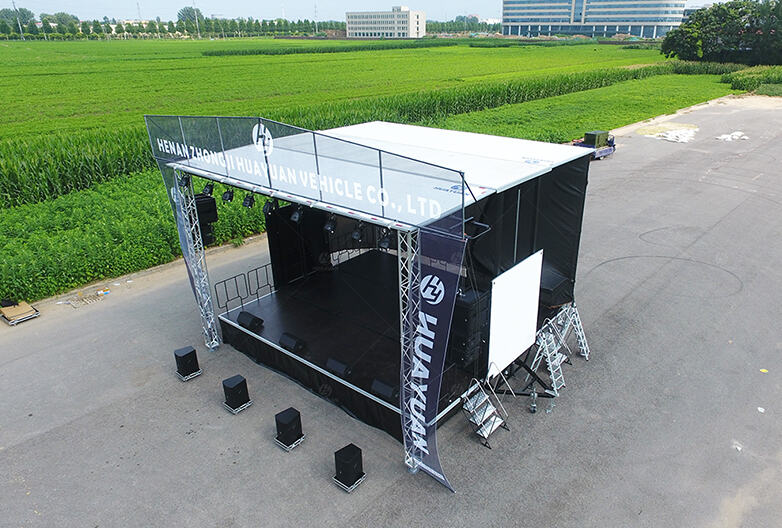

ST315 is a standard model in the HUAYUAN mobile stage trailer series. It uses a trailer-based integrated stage structure and hydraulic deployment system, balancing stage area, load capacity, and operational flexibility. It is suitable for medium-scale outdoor performances and event projects.
Compared with entry-level models, ST315 provides a more complete stage space and higher structural load capacity. It can support multiple performers and a more complete lighting configuration, while keeping a reasonable transport size for frequent use in city and regional events.
This model is suitable for city cultural activities, community and regional performances, festival events, and medium-scale touring shows. It provides a reliable option for events that require stable stage conditions, but do not need a large and complex stage structure.
ST315 is optimized around overall dimensions and use requirements, achieving an efficient balance between transport and on-site deployment.

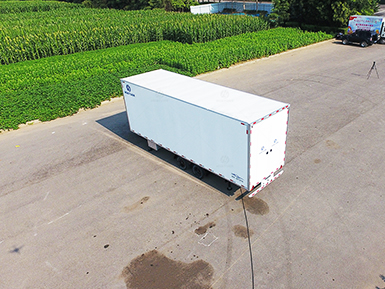

ST315 uses a standard trailer-based integrated structure. It maintains a balance between stage area and overall vehicle size, making it suitable for the transport and deployment needs of medium-scale events, and convenient for frequent use in city and regional projects.

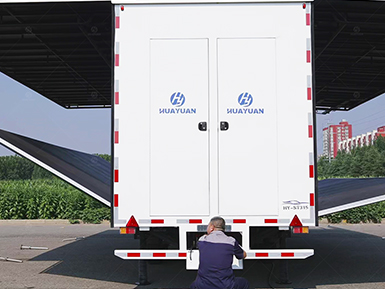

The stage is deployed and retracted by the hydraulic system. The deployment sequence is clear, and the movements are well synchronized, reducing manual setup work and making setup efficiency for multi-session events more stable and controllable.

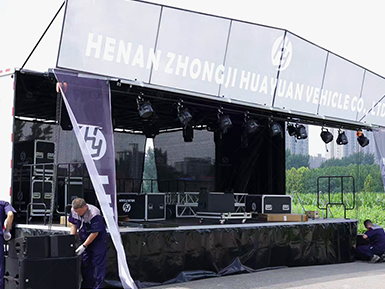

After deployment, a complete roof-covered space is formed, meeting the lighting equipment layout needs of medium-scale events.
The roof structure works together with the stage platform, maintaining stable support and load-bearing performance during frequent use.

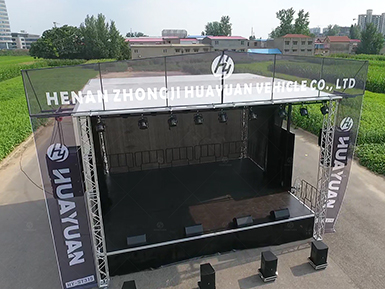

Compared with entry-level models, ST315 provides a more complete stage working space, making performer movement and equipment layout easier.
It is suitable for event scenarios where multiple performers need to use the stage at the same time.
| Length | 1.44 m + 8 m | 4'72" + 26'25" |
| Width | 2.35 m | 7'71" |
| Height | 3.6 m | 11'81" |
| Curb weight | 4950kg | 10912 lb |
| Total mass | 6600kg | 14550 lb |
| Axle/suspension | 2 Bridge/plate spring | - |
| Tyre | 4 | - |
| Length & Depth | 7.8 m x6.3 m | 25'59" × 20'67" |
| Height from Ground | 1 m | 3'28" |
| Load capacity | 500 kg/m² | 102 lb/ft² |
| Surface material | Birch anti-slip laminated board | - |
| Control system | Wireless remote + push button switch | - |
| Setup | 1-2 people/35 minutes | - |
| Wind resistance | with windwalls | 62 mph 100 km/h |
| without windwalls | 71 mph 115 km/h |
| Length & Depth | 8 m x 7.11 m | 26'25" × 23'33" |
| Stage to roof height | 4.5 m | 14'76" |
| Floor to roof height | 5.5 m | 18'04" |
| With Banner height | 6.7 m | 21'98" |
| Surface material | Fiberglass Honeycomb Panel | - |
| Lighting truss load capacity | 1750 kg | 3858 lb |
| Speaker rack load capacity | 600kg/each | 1322 lb/each |
| Top signal cable | 2-channel output | - |
| Stage lighting socket | 24-channel | - |
ST315 provides a more complete stage area while maintaining a reasonable overall size for medium-scale performance needs. It is suitable for city and regional events.
The trailer-based integrated structure can be transferred by a regular towing vehicle, allowing flexible scheduling between different sites and improving execution efficiency for multi-session events.
Stage deployment and retraction are completed by the hydraulic system, reducing manual setup steps and making the setup process more stable and controllable. It is suitable for repeated-use event arrangements.
The stage platform and roof structure provide higher load capacity, supporting multiple performers and a more complete lighting configuration. It provides reliable stage conditions for medium-size performances.
The structural design considers both safety and operating efficiency. 1–2 people can complete deployment, making it suitable for long-term use by professional event teams across different projects.
ST315 maintains a balance between stage scale, load capacity, and operating flexibility. It is suitable for various medium-scale outdoor performances and event scenarios, with strong versatility.

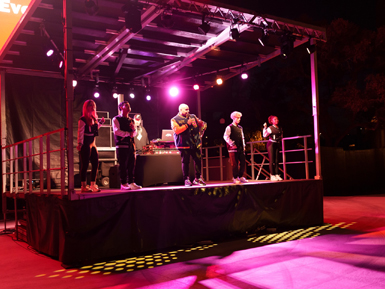

Suitable for city and regional performances where stable stage space and quick deployment are required.
Built for regional touring and repeated use across different event sites.
Suitable for festival shows, themed events, and public cultural programs without complex stage structures.

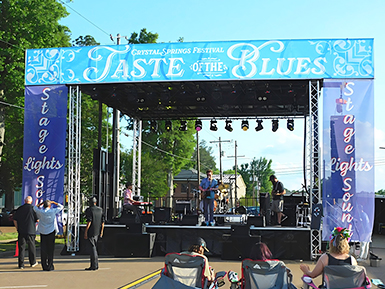

Fits community and urban public spaces, supporting stable use across different site conditions.
