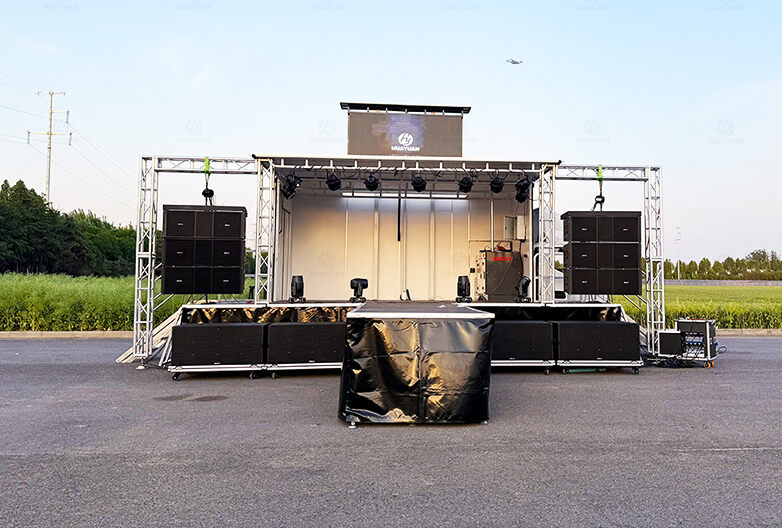

After deployment, the stage size is 7.7 × 8.38 m, suitable for mid-size scenarios such as city events and brand displays.
1–2 people can complete the changeover from transport mode to stage-ready status in about 35 minutes. The main movements are driven by the hydraulic system and support remote-control operation.
Based on the stage structure, the LED screen can be lifted from the stage position to above the roof through the hydraulic system, providing stronger long-distance visual presentation.
Lighting systems and line array audio systems can be configured according to the project. Power can be connected to an external source, or a generator solution can be selected.

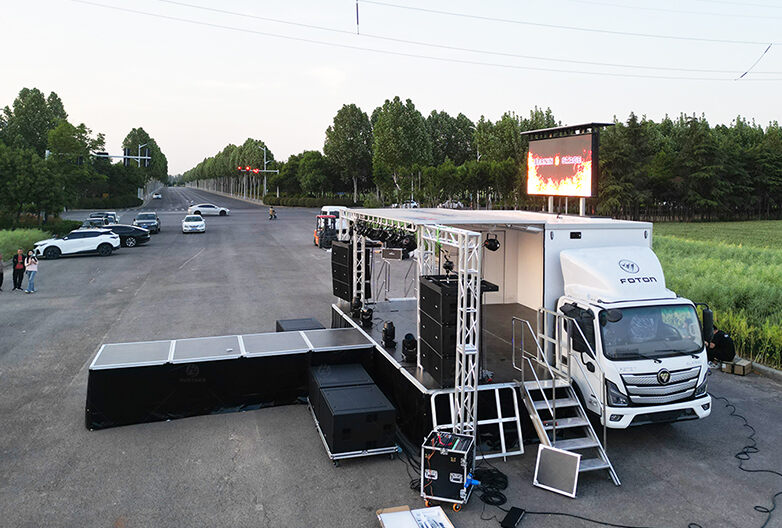

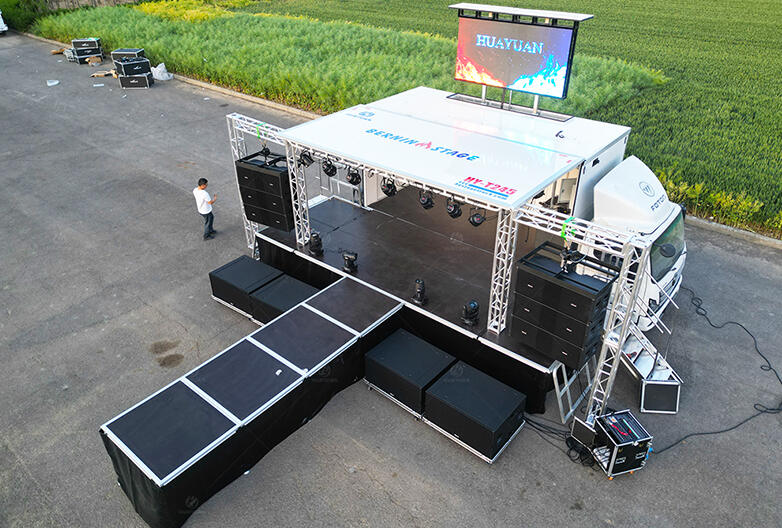

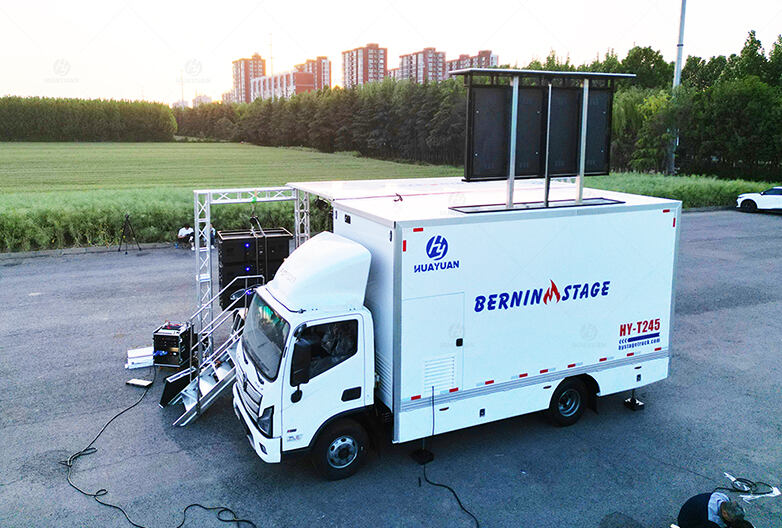

Based on a single-fold hydraulic stage, T245 integrates a stage-end lifting LED screen and is equipped with a lighting suspension structure, line array support structure, and generator power supply solution.

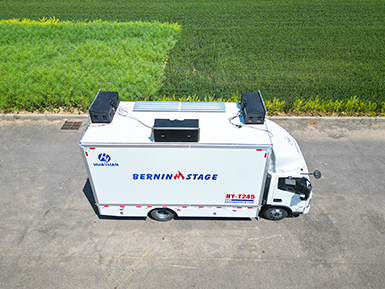

Speaker mounting frames are reserved on the top of the vehicle body.
When no performance is taking place, speakers can be mounted on the roof for news broadcasts, announcements, and other audio playback during driving or parking.

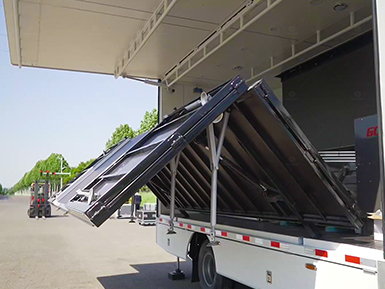

The stage uses a single-folding structure.
Deployment and retraction are completed by the hydraulic system, with key movements operated by remote control.

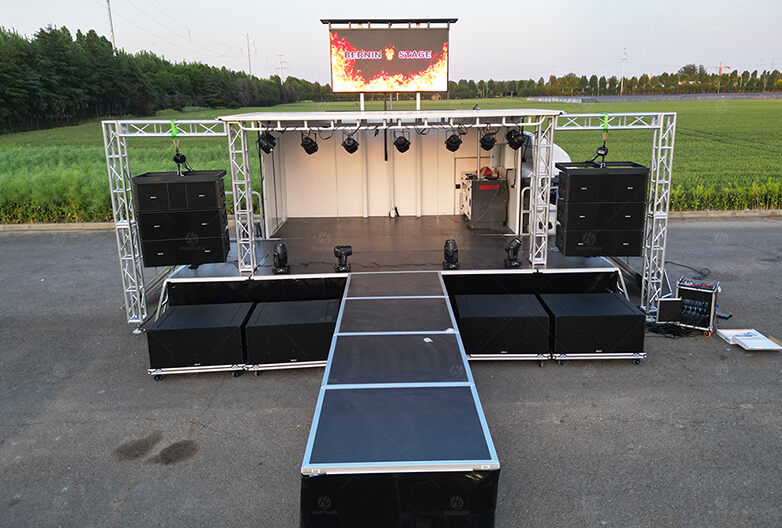

A 4.5 m front T-stage is configured at the front of the stage for performer movement and audience interaction.

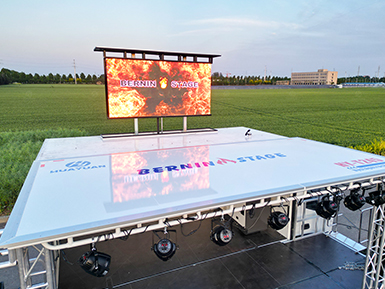

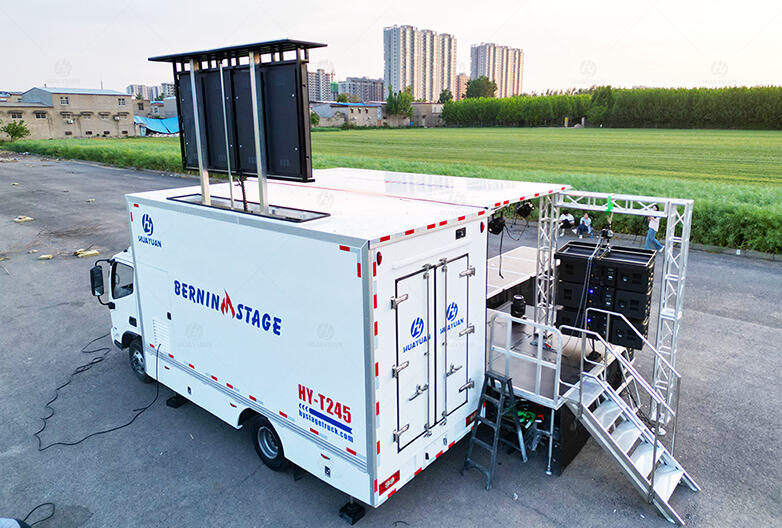

The LED screen is lifted hydraulically from the stage position to above the vehicle roof.
This raised position makes the screen easier to see from a distance, making it suitable for event information and brand visual display.

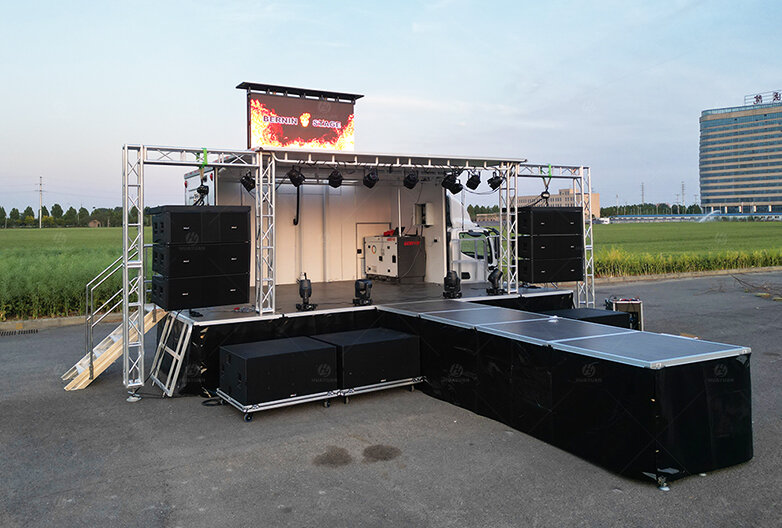

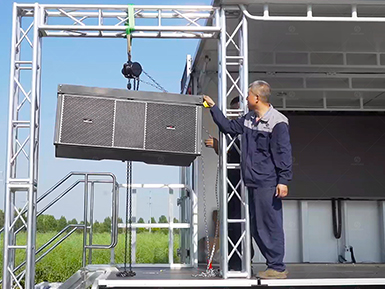

The stage uses a double-portal aluminum truss structure to provide stable suspension support for line array audio.
Additional hanging points and suspension components can be added according to project requirements to expand the audio layout and coverage range.

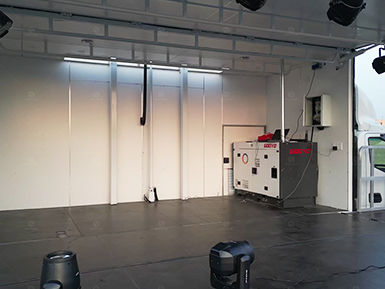

T245 is equipped with a generator, which can supply power for the PA speakers during driving.
When no external power source is available on site, the generator can also serve as the power supply source to support normal event operation.

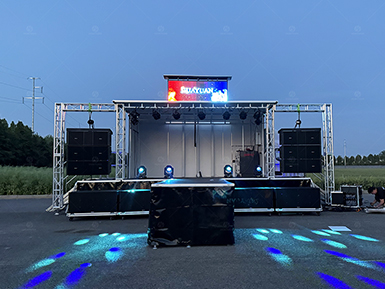

The roof uses a truss structure, providing reliable suspension points and layout space for the lighting system.
This makes fixture installation and on-site adjustment easier according to the project plan.
| Brand | Dongfeng, Foton, Isuzu (Optional) | - |
| Drive mode | 4×2 | - |
| Engine power | 141HP | - |
| Fuel type | Diesel / Gasoline | - |
| Emission standard | Euro II to Euro VI (optional) | - |
| Steering direction | Left/Right (optional) | - |
| Curb weight | 5850 kg | 12897 lb |
| Total mass | 8500 kg | 18739 lb |
| Tyre specification/quantity | 8.25R16/6+1 | - |
| Overall vehicle dimensions (LxWxH) | 7 m x 2.3 m x 3.4 m | 22'97" × 7'55" × 11'15" |
| Length & Depth | 7.7m x 8.38 m | 25'26" × 27'49" |
| Height from Ground | 1.2 m | 3'94" |
| Load capacity | 500 kg/m² | 102 lb/ft² |
| Surface material | Birch anti-slip laminated board | - |
| Control system | Wireless remote + push button switch | - |
| Setup | 1-2 people/35 minutes | - |
| Wind resistance | with windwalls | 60mph 97km/h |
| without windwalls | 67 mph 108 km/h |
| Length & Depth | 5.2 m x 7.11 m | 17'06" × 23'33" |
| Stage to roof height | 3.3 m | 10'83" |
| Floor to roof height | 4.5 m | 14'76" |
| With Banner height | 5.7 m | 18'7" |
| Surface material | Fiberglass Honeycomb Panel | - |
| Lighting truss load capacity | 2100 kg | 4629 lb |
| Speaker rack load capacity | 400kg/each | 881 lb/each |
| Top signal cable | 2-channel output | - |
| Stage lighting socket | 16-channel | - |
The LED screen is hydraulically lifted from the stage position to above the vehicle roof, supporting long-distance information display and brand visuals.
The dual-portal aluminum truss provides a suspension support frame for the line array system.
Left and right sound coverage can be arranged according to the audience area.
The main movements are centrally controlled by hydraulic remote control.
Reference configuration: 1–2 people, about 35 minutes to enter the setup stage.
The deployed stage deck is 7.7 × 8.38 m.
A 4.5 m T-stage can be configured at the front for performer movement and audience interaction.
The roof truss provides lighting suspension points and layout space.
The roof lighting load capacity is 2100 kg.
The solution includes two power supply paths: external power connection and built-in generator power supply.
This covers power for on-site systems and roof-mounted PA speakers.

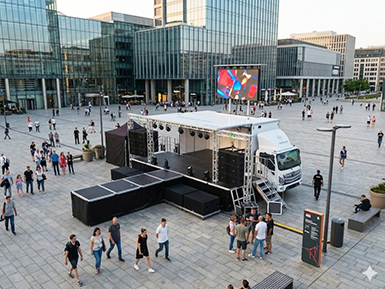

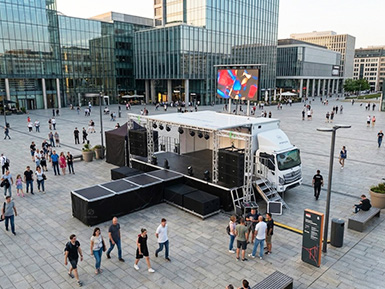

Suitable for open venues and dispersed audience areas where longer-distance identification is required.
The LED screen is hydraulically lifted from the stage position to above the vehicle roof for information and brand content display.

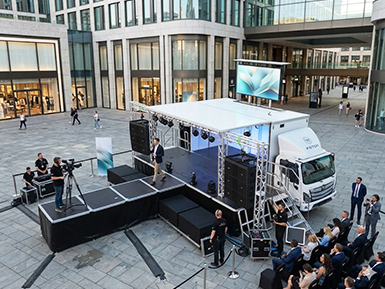

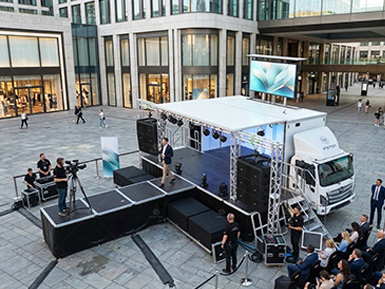

Suitable for events where program presentation and interaction take place at the same time.
The 7.7 × 8.38 m deck can be equipped with a 4.5 m front T-stage for front-stage movement and audience interaction.

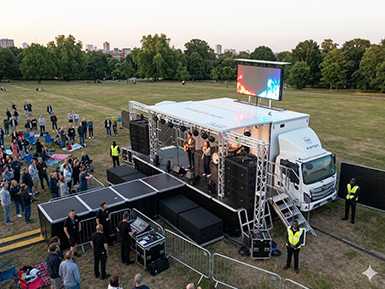

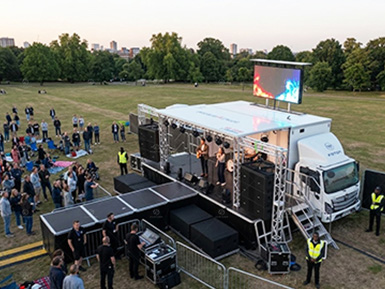

Suitable for outdoor performances that require clear sound coverage.
The dual-portal aluminum truss provides suspension support for line array audio, supporting sound coverage on both sides.

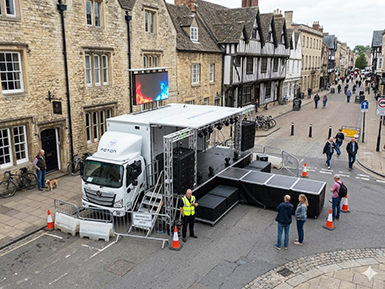

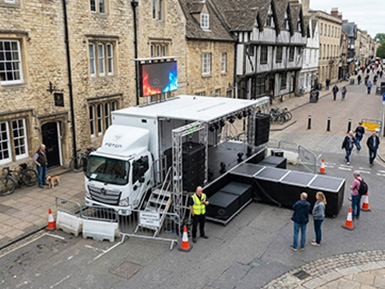

Suitable for street announcements, guidance, and information broadcasting tasks.
The roof-mounted PA speakers can use power from the built-in generator, allowing broadcasts when external power is unavailable.
